Technical parameters:

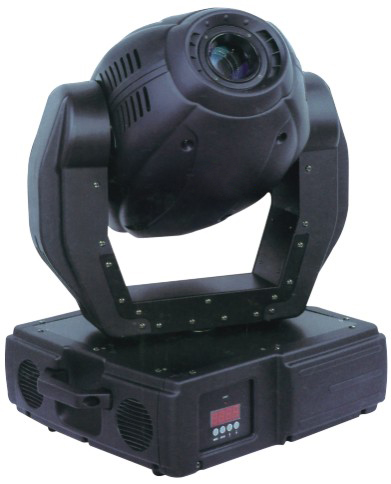

Model: MDB-005
Voltage: AC220V/50 Hz
Power Consumption: 750W
Insurance: 5A
Light Source: HMI575W
Control signal: DMX512
Channels: 16CH
Packing Size: L420 × W420 × H570 (mm)
Gross Weight: 33kg
Function:
On / off light / Strobe: double-plate mechanical linear dimmer, 1-10 times per second, variable speed strobe
Color wheel: 7 colors + white / rainbow effect
Gobo wheel: 7 + white / bi-directional rotation speed
Prism effect: two-way rotation speed
Pattern sharpness adjustment: Automatic adjustment of electronic focus, adjust the distance definition
Maximum angle of horizontal rotation (X axis): 540 degrees
Maximum rotation angle of the vertical (Y axis): 270 degrees
Horizontal and vertical rotation speed adjustable
Horizontal and vertical rotary position fine-tuning
Safety: the machine has a thermal protection, high voltage protection, safe and reliable.
