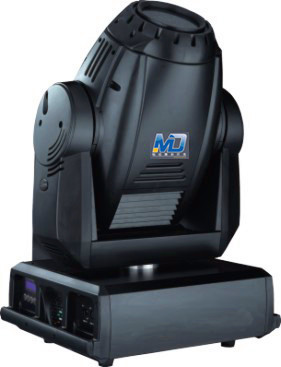

1200W Moving Head Light
Technical parameters:
Model: MDB-002
Lamp: 1200W short arc gas discharge lamp
Lampholder: GY-22
Available models: PHILIPS HMI1200
Rectifier: electromagnetic ballasts
Power: 208/230/250V, 50HZ, 208/230V, 60HZ
Power: 1500W, 220V/50HZ
Maximum ambient temperature: 40 ℃ (104 ° F)
Maximum surface temperature; 135 ℃ (275 ° F)
Size: 619x536x616 (mm)
Net weight: 50KG
GW: 83KG (including the air box)
Features
Communication protocol: DMX-512
Control Channel: 18CH
Display: LCD graphics display
Horizontal / Vertical Resolution: 8 or 16bit
Pattern positioning: 8 or 16bit
Prism positioning: 8 or 16bit
Movement control: Tracking and vector
Data Input / Output: 3 pin
Green 0-100% Magenta: 0-100%
Yellow: 0-100% CTO: 0-100%
Color wheel: 6 replaceable colors + white
1:6 a pattern round glass gobos + can be replaced
Gobo wheel 2:6 can be replaced glass gobos + open
Gobo Size: 37mm
Aperture: Electric, Linear
Effect wheel: 4 replaceable prisms and effects + white
Atomization: Independent, adjustable
Dimmer / Strobe: linear dimming and variable speed strobe
Horizontal: 530 degrees Vertical: 280 degrees
 |
